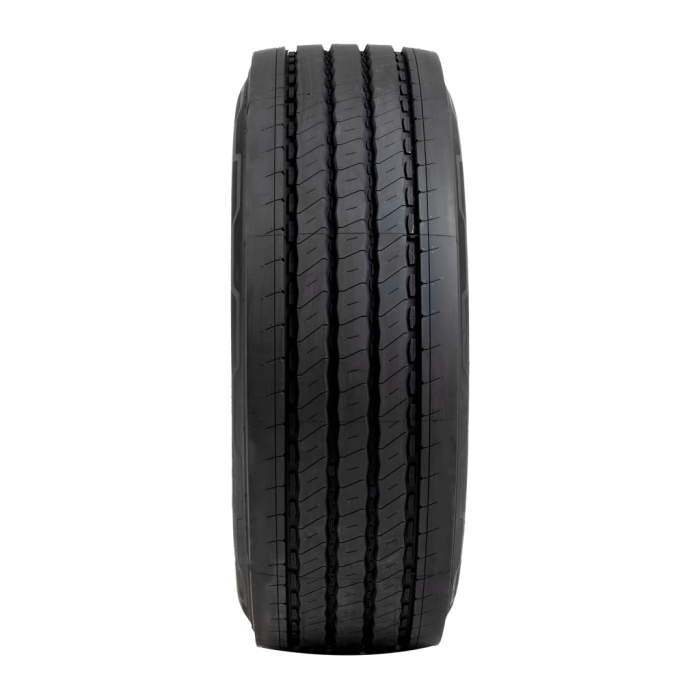

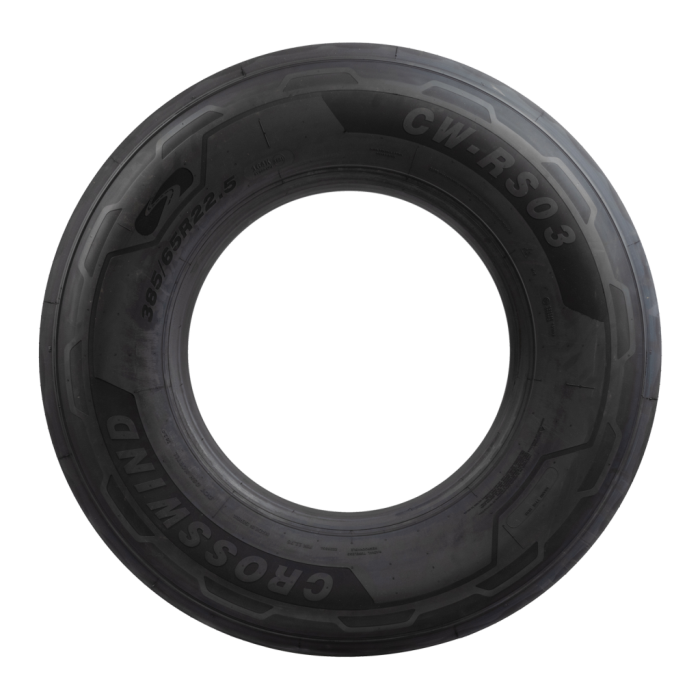

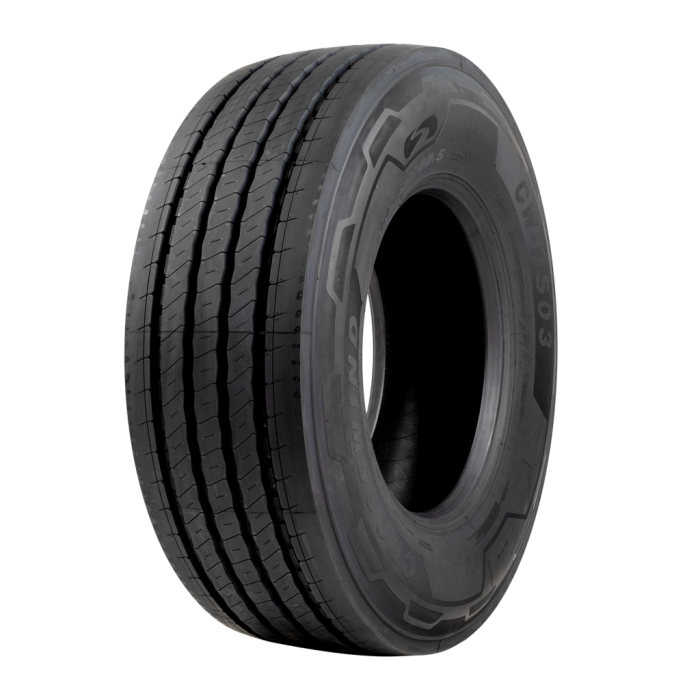

CW-RS03
Suitable for steer axle of trucks running with high speed on highway.
Notice: TBC CORPORATION is Sole and Exclusive Agent for CROSSWIND brand tyres in the United States Market!
Features
Warranties| Size | Ply Rating | Load Index | Speed Symbols | Standard Rim | Max Load and Inflated Pressure | Overall Diameter (mm) | Section Width (mm) | Tread Depth (mm) | Operation Norm | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Dual | Single | |||||||||||
| kg | kpa | kg | kpa | |||||||||
| 295/60R22.5 | 16 | 150/147 | L | 9.00 | 3075 | 900 | 3350 | 900 | 926 | 292 | 12.5 | ETRTO |
| 295/80R22.5 | 18 | 154/149 | M | 9.00 | 3250 | 850 | 3750 | 850 | 1044 | 298 | 14.5 | ETRTO |
| 315/60R22.5 | 16 | 152/148 | L | 9.75 | 3150 | 900 | 3550 | 900 | 950 | 313 | 13.0 | ETRTO |
| 315/70R22.5 | 18 | 156/150(154/150) | L(M) | 9.00 | 3350 | 900 | 4000 | 900 | 1014 | 312 | 14.5 | ETRTO |
| 315/80R22.5 | 22 | 158/150(154/150) | L(M) | 9.00 | 3350 | 900 | 4250 | 900 | 1076 | 312 | 14.5 | ETRTO |
| 385/55R22.5 | 20 | 160(158) | K(L) | 12.25 | -- | -- | 4500 | 900 | 996 | 386 | 12.5 | ETRTO |
| 385/65R22.5 | 24 | 164(158) | K(L) | 11.75 | -- | -- | 5000 | 900 | 1072 | 389 | 14.5 | ETRTO |
